Zip® Water HydroTap Classic Boiling, Chilled, Sparkling Kit in Bright Chrome

Zip Water

Model #:

CLASSICBCS120V-CH

Model #: CLASSICBCS120V-CH
1794939
Zip Water
$5,785.00

At a Glance

Zip HydroTap Boiling, Chilled, Sparkling for Residential and Small Commercial - Kitted Base Module with 1.5 lb CO2 and Regulator with Classic Tap - Bright Chrome. Kit includes tap (01034208) and Command Center (01048497).Read More

Color/Finish Name:Bright Chrome

Price Starting At
$5,785.00

View Delivery & Pickup OptionsAdd Zip Code
Request More Info

Get to know this product.

Product Overview

Product Overview

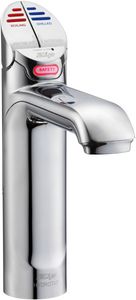

HydroTap Classic Boiling/Chilled/Sparkling (BCS) Tap

Elevate your home hydration with the HydroTap Classic BCS Tap and enjoy instant access to filtered boiling, chilled and sparkling water from the tap.

The HydroTap Classic can be installed over the sink as a secondary tap or over either of the optional Classic Range Font/Drip Trays (Integrated or Raised).

The HydroTap Classic is available in three finishes: Chrome, Brushed Chrome and Matte Black.

HydroTap 120V BCS G5 Kitted Command Center

The HydroTap by Zip Water is more than just a water system, it’s cooking made easy, it’s sparkling water on-demand and it’s a crisp glass of chilled water. That’s because the HydroTap 120V BCS command center provides users instant access to filtered boiling, chilled and sparkling water.

This command center is kitted with 1.5lb CO2 (2 cylinders) + CO2 regulator. This kit ideal for residential and small commercial applications and can be paired with any of the various tap styles.

Installation Requirements

Installation and connection of your HydroTap must be carried out by a qualified person, observing all local, state, & federal regulations. You will require suitable 110 -120V 50-60Hz, 15 amp power supply with a NEMA 5-15 electrical outlet within 5’ 9” (1.75m) of the product.

The HydroTap is a pump-driven system so the installation of the Tap must be within 3’ (0.9m) of the base command center. The HydroTap is an air-cooled system so discrete cabinetry cut-outs are required for ventilation. Installation on most countertops is straightforward however, some stone countertops may require a specialized cutting service.

If using a drip tray (font) accessory, suitable drainage to a trapped waste is required within 3’ (0.9m) of the installation. If you live in an area with hard water (more than 150ppm), installation of a scale filtration kit or a water softener is recommended. Sufficient space and clearance to install the HydroTap as detailed in the product installation guidelines is required.

Useful Documents
Specification Sheet
Specifications

General Specs

MaterialMetal
CollectionClassic
Handle StylePush Button
Plumbing Installation TypeDeck Mounted
Spout Height8.25
ColorChrome
SeriesHydroTap
Color/Finish NameBright Chrome
Flow Rate1.8
Spout Reach4.56
ADA CompliantYes
Cec CompliantYes

HydroTap Classic BCS - Tap Specifications

Style:HydroTap Classic Tap (BCS) - includes boiling water safety lock
Hole Size:1 - 3/8” / 35mm
Tap Height:8 1 /4” (209mm) or 13 13/16” (351mm) when installed with the optional font extension
Installation:Over sink as a secondary tap or on optional font/drip tray
Flow Rate:Max 1.8 gpm / 6.81 lpm
Sparkling Water Flow Rate:0.4 gpm / 1.51 lpm
Product Certifications:IAPMO - NSF/ANSI 372, 42, 53, CSA B438.1, ASSE 1023, ASSE 1087; cUL; CEC
ADA Compliant:Yes

HydroTap 120V BCS G5 Command Center - Product Specifications

Product Order Code:01048497
Water Pressure:Min 37psi – Max 100psi (2.60 - 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
Water Connection: ½” BSP - isolation valve is required within 3’ (0.9m) of the installation
Integral Water Values:All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2 ) Pressure Limiting Valve
Water Supply Requirements:Potable drinking water supply
Optimal Total Dissolved Solids (TDS) Range:TDS Min 50ppm – Max 150ppm
Integral Water Filter:0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months
Power Rating:110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
Dimensions (WxDxH):13.3” x 18.2” x 13.1” / 339mm x 462mm x 333mm
Minimum Air Gap:Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
Minimum Cabinet Size:20” wide x 24” deep / 508mm wide x 610mm deep
Maximum Hose Connection Length:3’ / 0.9m (tap to command center)
Minimum Distance Needed for Installation:15” / 381mm (interior wall to garbage disposal)
Dry Weight:75lbs / 34kg
Product Approvals:IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
Warranty:2-year limited parts and labor warranty
Included CO2 Cylinder:Zip Water 1.5lb CO2 (includes 2 cylinders) with CGA-320 fitting + CO2 regulator
CO2 Operating Pressure:Min 39psi - Max 44psi / Min 2.74 - Max 3.09kg/cm2

1.5lb CO2 Cylinder + Regulator Specifications

Product Description:2 x 1.5lb Beverage-Grade Carbon Dioxide Cylinder with Regulator
CO2 Capacity:Approximately 400 8oz cups (per canister)
CO2 Operating Pressure:Min 39psi - Max 43psi / Min 2.74 - Max 3.02kg/cm2
CO2 Height (without regulator): Approximately 12” / 305mm
CO2 Diameter:Approximately 3.2” / 81mm
CO2 Regulator Height:Approximately 6” / 152mm
CO2 Regulator Width:Approximately 7” / 178mm
CO2 Regulator Depth:Approximately 4.3” / 109mm
Valve Type:CGA-320
Max Height (with regulator):Approximately 19” / 482mm
Max Width (with regulator):Approximately 6” / 152mm
Storage Temperature:CO2 should be stored out of direct sunlight. Max storage temperature is 120°F (48.8°C)
