Zip® Water HydroTap Classic Boiling, Chilled Kit in Bright Chrome

Zip Water

Model #:

CLASSICBC120V-CH

Model #: CLASSICBC120V-CH
1798160
Zip Water
$5,105.00

At a Glance

Zip HydroTap Boiling, Chilled for Residential and Small Commercial - Kitted Base Module with Classic Tap - Bright Chrome. Kit includes tap (01034211) and Command Center (01043465).Read More

Color/Finish Name:Bright Chrome

Price Starting At
$5,105.00

View Delivery & Pickup OptionsAdd Zip Code
Request More Info

Get to know this product.

Product Overview

Product Overview

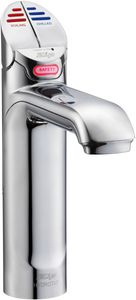

HydroTap Classic Boiling/Chilled (BC) Tap

Elevate your home hydration with the HydroTap Classic BC Tap and enjoy instant access to filtered boiling and chilled water from the tap.

The HydroTap Classic can be installed over the sink as a secondary tap or over either of our optional Classic Range Font/Drip Trays (Integrated or Raised).

The HydroTap Classic is available in three finishes: Chrome, Brushed Chrome and Matte Black.

HydroTap 120V BC G5 Command Center

The HydroTap by Zip Water is more than just a water system, it’s cooking made easy and it’s water at its best. That’s because the HydroTap 120V BC command center provides users instant access to filtered boiling and chilled water.

This command center is ideal for residential and small commercial applications and can be paired with any of our various tap styles.

Installation Requirements

Installation and connection of your HydroTap must be carried out by a qualified person, observing all local, state, & federal regulations. You will require suitable 110 -120V 50-60Hz, 15 amp power supply with a NEMA 5-15 electrical outlet within 5’ 9” (1.75m) of the product.

The HydroTap is a pump-driven system so the installation of the Tap must be within 3’ (0.9m) of the base command center. The HydroTap is an air-cooled system so discrete cabinetry cut-outs are required for ventilation. Installation on most countertops is straightforward however, some stone countertops may require a specialized cutting service.

If using a drip tray (font) accessory, suitable drainage to a trapped waste is required within 3’ (0.9m) of the installation. If you live in an area with hard water (more than 150ppm), we recommend installation of a scale filtration kit or a water softener. Sufficient space and clearance to install the HydroTap as detailed in the product installation guidelines is required.

Useful Documents
Specification Sheet
Specifications

General Specs

MaterialMetal
CollectionClassic
Handle StylePush Button
Plumbing Installation TypeDeck Mounted
Spout Height8.25
ColorChrome
SeriesHydroTap
Color/Finish NameBright Chrome
Flow Rate1.8
Spout Reach4.56
ADA CompliantYes
Cec CompliantYes

HydroTap Classic BC - Tap Specifications

Style:HydroTap Classic Tap (BC) - includes boiling water safety lock
Hole Size:1 - 3/8” / 35mm
Tap Height:8 1 /4” (209mm) or 13 13/16” (351mm) when installed with the optional font extension
Installation:Over sink as a secondary tap or on optional font/drip tray
Flow Rate:Max 1.8 gpm / 6.81 lpm
Product Certifications:IAPMO - NSF/ANSI 372, 42, 53, CSA B438.1, ASSE 1023, ASSE 1087; cUL; CEC
ADA Compliant:Yes

HydroTap 120V BC G5 Command Center - Product Specs

Product Order Code:01043465
Water Pressure:Min 37psi – Max 100psi (2.60 - 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79 lpm)
Water Connection: ½” BSP - isolation valve is required within 3’ (0.9m) of the installation
Integral Water Values:All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2 ) Pressure Limiting Valve
Water Supply Requirements:Potable drinking water supply
Optimal Total Dissolved Solids (TDS) Range:TDS Min 50ppm – Max 150ppm
Integral Water Filter:0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months
Power Rating:110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
Dimensions (WxDxH):13.3” x 18.2” x 13.1” / 339mm x 462mm x 333mm
Minimum Air Gap:Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
Minimum Cabinet Size:18” wide x 24” deep / 457mm wide x 609mm deep
Maximum Hose Connection Length:3’ / 0.9m (tap to command center)
Minimum Distance Needed for Installation:15” / 381mm (interior wall to garbage disposal)
Dry Weight:66lbs / 30kg
Product Approvals:IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
Warranty:2-year limited parts and labor warranty
