Zip® Water HydroTap Celsius Plus Boiling, Chilled, Sparkling Kit in Bright Chrome
At a Glance
Zip HydroTap Boiling, Chilled, Sparkling for Residential and Small Commercial - Kitted Base Module with 1.5 lb. CO2 and Regulator with Celsius Plus Tap - Bright Chrome. Kit includes tap (01045832) and Command Center (01048497).Read More
Color/Finish Name:Bright Chrome
Get to know this product.
Product Overview
Product Overview

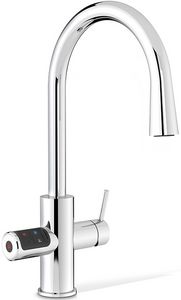

HydroTap Celsius Plus All-in-One (AIO)
Form meets function with the HydroTap Celsius Plus All-in-One (AIO). Intended for installation over a sink in the kitchen or wet bar, the Celsius Plus AIO instantly dispenses filtered boiling, chilled and sparkling water, plus unfiltered hot & cold water. And it’s all wrapped up in Zip Water’s enduringly stylish design.
So whether you are looking to upgrade your home hydration or you want the convenience of cooking made easy, the HydroTap Celsius Plus AIO is the perfect tap to meet your needs. The Celsius Plus AIO is available in six luxury finishes from our classic chrome to our stylish brushed gold and gunmetal to complement any kitchen or wet bar.
HydroTap 120V BCS G5 Kitted Command Center
The HydroTap by Zip Water is more than just a water system, it’s cooking made easy, it’s sparkling water on-demand and it’s a crisp glass of chilled water. That’s because the HydroTap 120V BCS command center provides users instant access to filtered boiling, chilled and sparkling water.
This command center is kitted with 1.5lb CO2 (2 cylinders) + CO2 regulator. This kit ideal for residential and small commercial applications and can be paired with any of the various tap styles.
Installation Requirements
Installation and connection of your HydroTap must be carried out by a qualified person, observing all local, state, & federal regulations. You will require suitable 110 -120V 50-60Hz, 15 amp power supply with a NEMA 5-15 electrical outlet within 5’ 9” (1.75m) of the product.
The HydroTap is a pump-driven system so the installation of the Tap must be within 3’ (0.9m) of the base command center. The HydroTap is an air-cooled system so discrete cabinetry cut-outs are required for ventilation. Installation on most countertops is straightforward however, some stone countertops may require a specialized cutting service.
If using a drip tray (font) accessory, suitable drainage to a trapped waste is required within 3’ (0.9m) of the installation. If you live in an area with hard water (more than 150ppm), installation of a scale filtration kit or a water softener is recommended. Sufficient space and clearance to install the HydroTap as detailed in the product installation guidelines is required.
Useful Documents
Specifications
General Specs | |
| Material | Metal |
| Collection | Celsius Plus |
| Handle Style | Lever |
| Plumbing Installation Type | Deck Mounted |
| Spout Height | 17.3 |
| Number Of Faucet Handles | 1 |
| Color | Chrome |
| Series | HydroTap |
| Color/Finish Name | Bright Chrome |
| Flow Rate | 1.8 |
| Spout Reach | 8.9 |
HydroTap Celsius Plus All-in-One (AIO) BCS 120V - Tap Specifications | |
| Style: | HydroTap Celsius Plus All-in-One (AIO) BCS 120V |
| Hole Size: | 2” / 50mm |
| Tap Height: | 17.3” / 440mm |
| Installation: | Over the sink as the primary faucet |
| Flow Rate: | Max 1.8gpm / 6.8lpm |
| Sparkling Water Flow Rate: | 0.4 gpm / 1.51 lpm |
| Mixer Type: | Ceramic disc cartridge |
| Water outlets: | Installation requires both hot and cold water supplies |
| Clearance for handle: | Minimum distance from center hole to wall: 3 7 /16” (88mm) |
HydroTap 120V BCS G5 Command Center - Product Specifications | |
| Product Order Code: | 01048497 |
| Water Pressure: | Min 37psi – Max 100psi (2.60 - 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm) |
| Water Connection: | ½” BSP - isolation valve is required within 3’ (0.9m) of the installation |
| Integral Water Values: | All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2 ) Pressure Limiting Valve |
| Water Supply Requirements: | Potable drinking water supply |
| Optimal Total Dissolved Solids (TDS) Range: | TDS Min 50ppm – Max 150ppm |
| Integral Water Filter: | 0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months |
| Power Rating: | 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet |
| Dimensions (WxDxH): | 13.3” x 18.2” x 13.1” / 339mm x 462mm x 333mm |
| Minimum Air Gap: | Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above |
| Minimum Cabinet Size: | 20” wide x 24” deep / 508mm wide x 610mm deep |
| Maximum Hose Connection Length: | 3’ / 0.9m (tap to command center) |
| Minimum Distance Needed for Installation: | 15” / 381mm (interior wall to garbage disposal) |
| Dry Weight: | 75lbs / 34kg |
| Product Approvals: | IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC |
| Warranty: | 2-year limited parts and labor warranty |
| Included CO2 Cylinder: | Zip Water 1.5lb CO2 (includes 2 cylinders) with CGA-320 fitting + CO2 regulator |
| CO2 Operating Pressure: | Min 39psi - Max 44psi / Min 2.74 - Max 3.09kg/cm2 |
1.5lb CO2 Cylinder + Regulator Specifications | |
| Product Description: | 2 x 1.5lb Beverage-Grade Carbon Dioxide Cylinder with Regulator |
| CO2 Capacity: | Approximately 400 8oz cups (per canister) |
| CO2 Operating Pressure: | Min 39psi - Max 43psi / Min 2.74 - Max 3.02kg/cm2 |
| CO2 Height (without regulator): | Approximately 12” / 305mm |
| CO2 Diameter: | Approximately 3.2” / 81mm |
| CO2 Regulator Height: | Approximately 6” / 152mm |
| CO2 Regulator Width: | Approximately 7” / 178mm |
| CO2 Regulator Depth: | Approximately 4.3” / 109mm |
| Valve Type: | CGA-320 |
| Max Height (with regulator): | Approximately 19” / 482mm |
| Max Width (with regulator): | Approximately 6” / 152mm |
| Storage Temperature: | CO2 should be stored out of direct sunlight. Max storage temperature is 120°F (48.8°C) |
